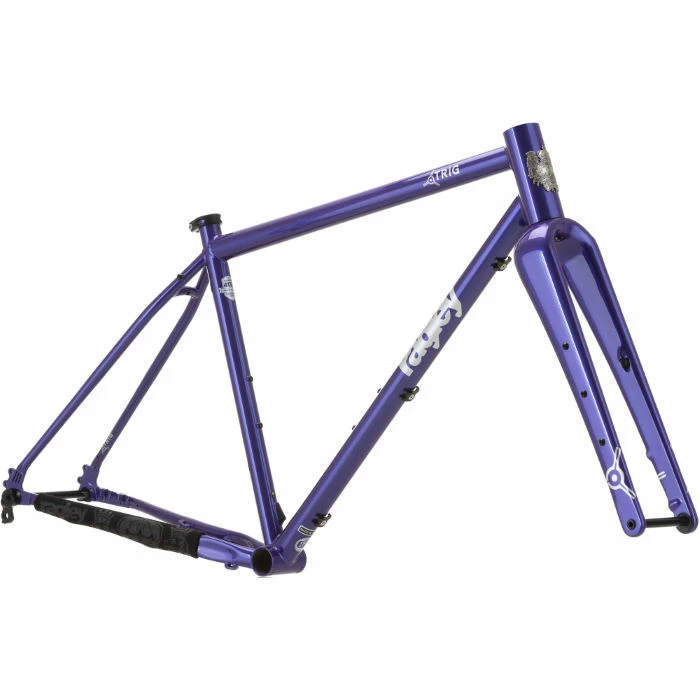

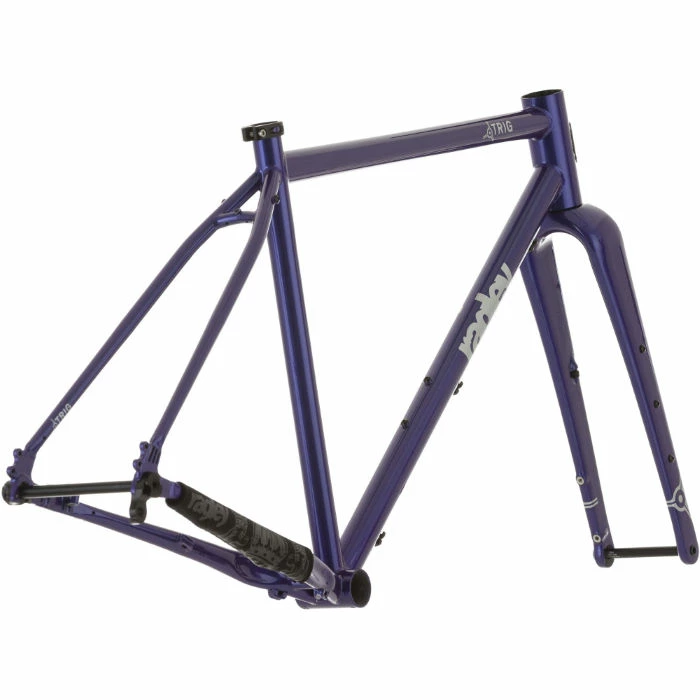

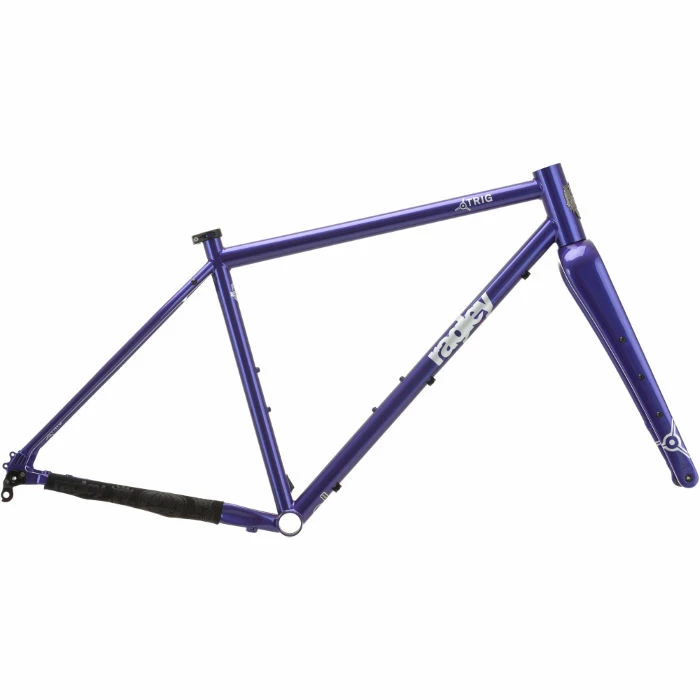

Ragley Trig Hardtail Frame – Ultra Violet

The ultimate versatile all-terrain gravel frameset, the Ragley Trig Hardtail Frame features a strong and lightweight Chromoly (CrMo) steel frame and a carbon fork for bikepacking adventures, urban inner-city errands and long-distance daily commutes.

The Trig has been a firm favourite for a massively diverse group of riders. We have seen them fully loaded for multi-day adventures, shod with slicks as an urban commuter, or just ridden stock for local lockdown sanity missions.

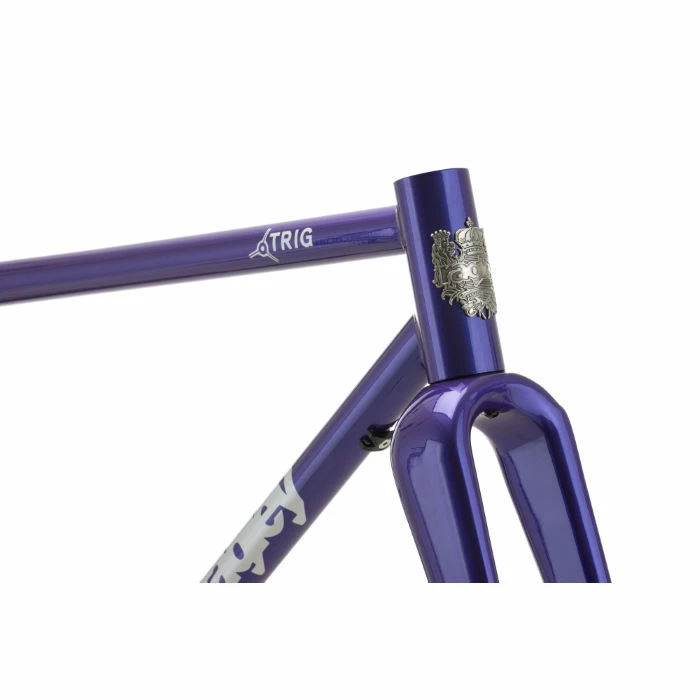

The Trig frameset features a 44mm headtube, multiple bottle cage mounts and tyre clearance to run any 700 or 650 gravel tyre option you want (and up 2.1” wide MTB tyres on 27.5” wheels).  Want to get a little rowdier with your drop-bar endeavours? It’s even dropper post compatible for future off-road biased upgrades.

The frame is engineered from custom triple-butted 4130 Chromoly steel tubing resulting in a frame that is lightweight and supple enough to provide comfort on longer trail rides whilst robust and stiff enough to take some serious abuse. The carbon fork features a 12mm thru-axle and the mounting points you need to take to the backcountry.

We’re not going to pigeonhole the trig as gravel or adventure anymore. It’s all the same thing. We just made a super fun and reliable frame for you to go find your own adventure.

Features:

5 Year Warranty and lifetime crash replacement
Material: 4130 Chromoly steel frame & Carbon fork
ISO 4210 Certified
Head Angle: 70˚Static
Effective Seat Angle: 74˚

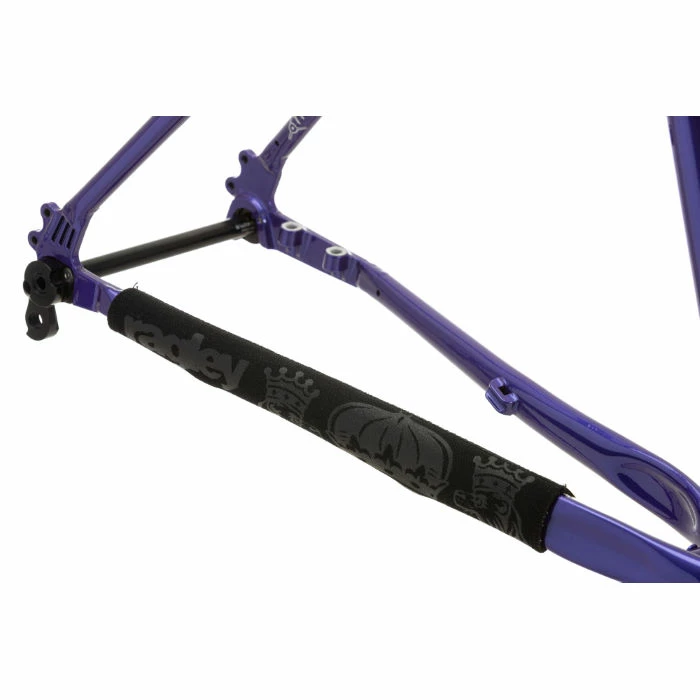

Chainstay Length: 425mm
Seatpost: 27.2mm

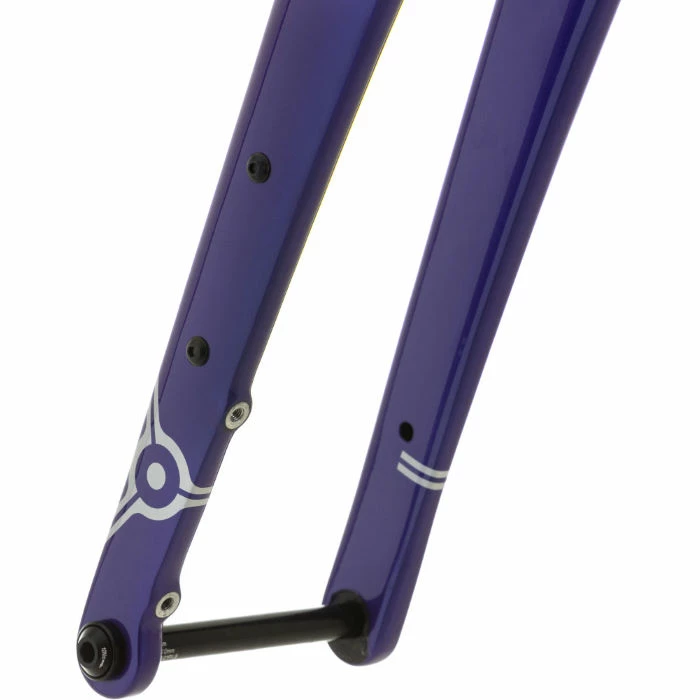

Front Axle: Ragley 12mm x 100mm Thru-Axle

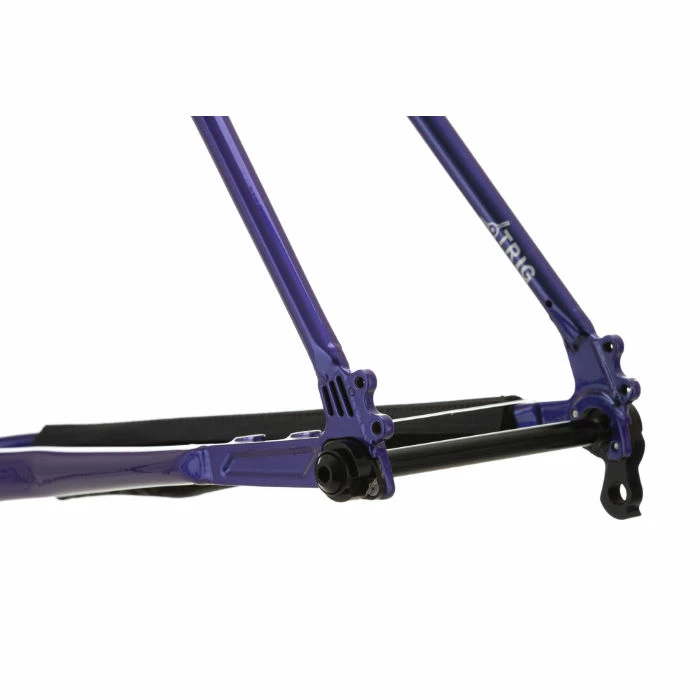

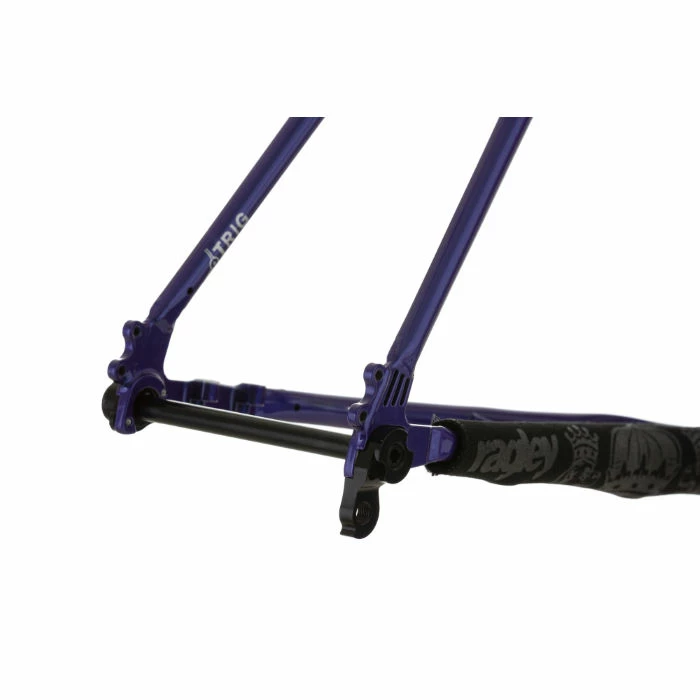

Rear Axle: Ragley 12mm x 142mm Thru-Axle

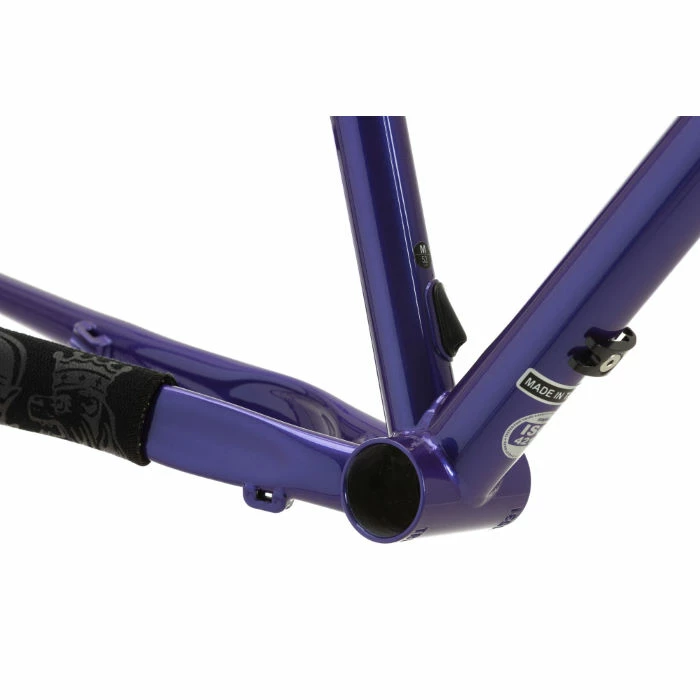

BB Shell: 68mm BSA
Headset: ZS44/28.6
EX44/40
Wheel Size: 700c
Max Tyre Size: 700x40c/27.5×2.1”
BB Drop: -66mm
Rack & Fender mounts
Weight: Approximately 2.9kg / Frame 2.32kg / Fork 0.58kg

Topfunktioner:

• 5 Year Warranty and lifetime crash replacement
• Material: 4130 Chromoly steel frame and Carbon fork
• ISO 4210 Certified
• Wheel Size: 700c
• Max Tyre Size: 700x40c/27.5×2.1
• Rack and Fender mounts
• Seatpost: 27.2mm
• Front Axle: Ragley 12mm x 100mm Thru-Axle
• Rear Axle: Ragley 12mm x 142mm Thru-Axle
• Weight: Approximately 2.9kg / Frame 2.32kg / Fork 0.58kg
